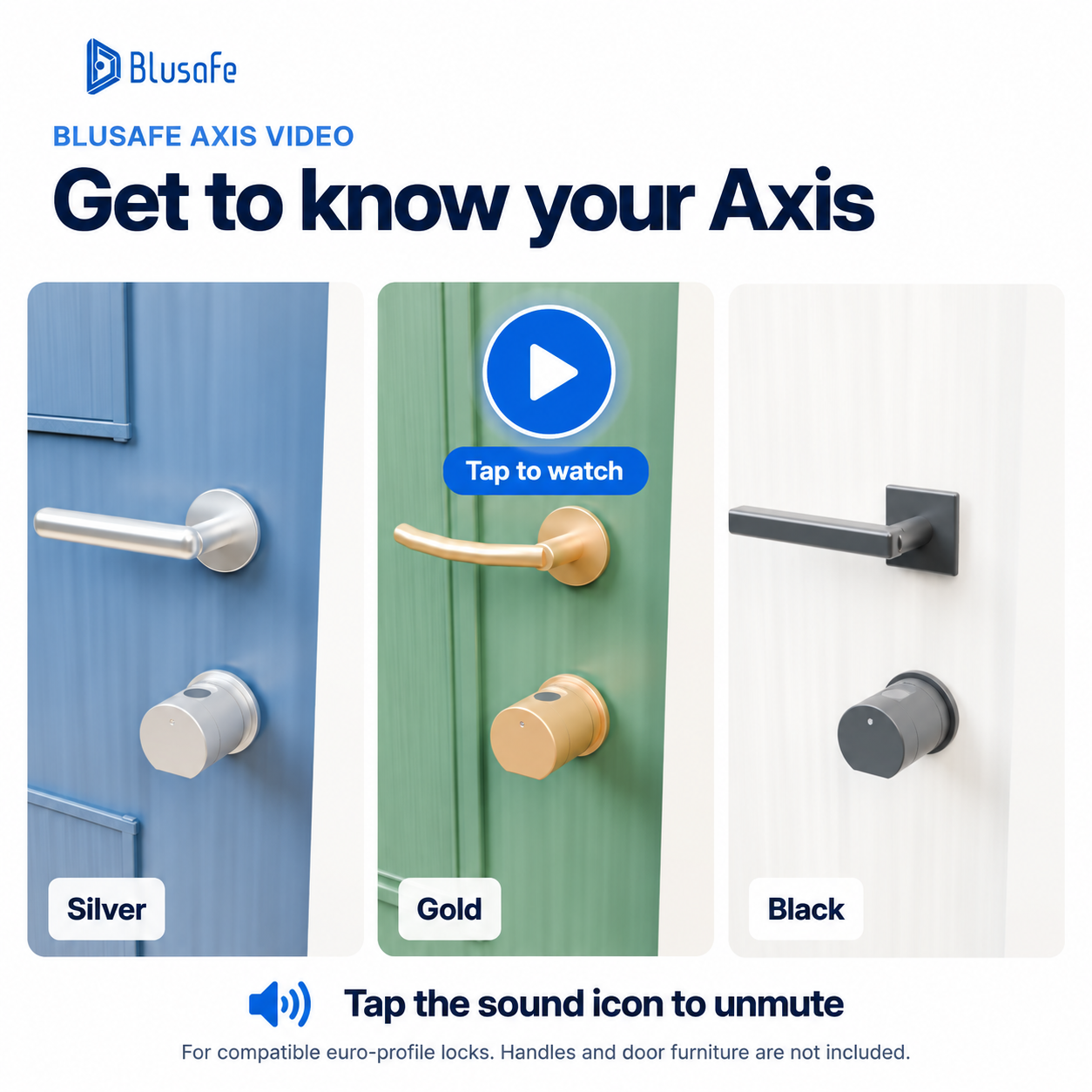

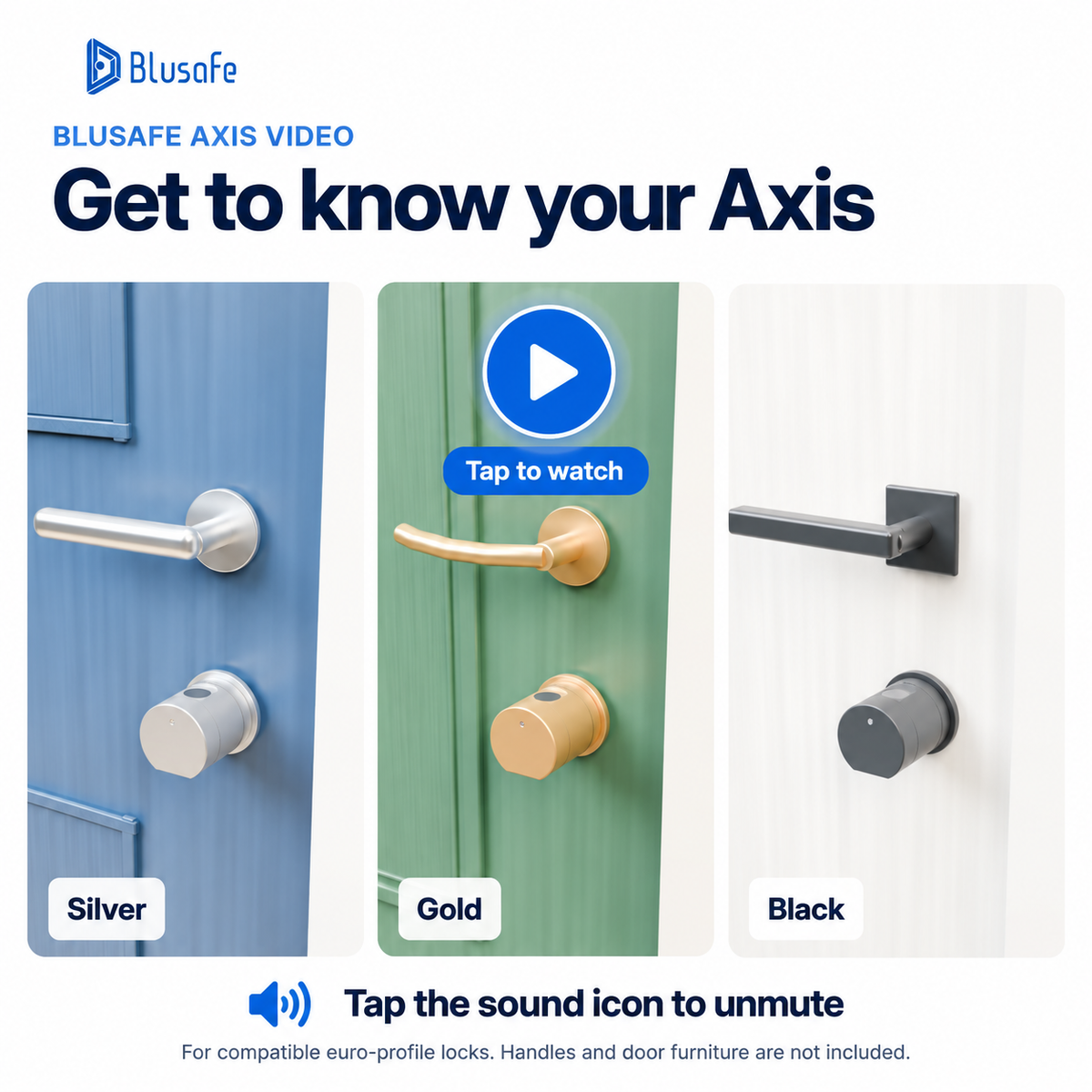

BLUSAFE AXIS VIDEO · 73 SECONDS
See the colours, five ways to unlock and everyday operation.
Tap play to watch. Tap the sound icon to unmute if needed.
Swap a cylinder. Smarten the door.
Bluetooth control via the Tuya Smart app — remote access requires a compatible Tuya Bluetooth gateway, sold separately.
The Axis replaces a compatible euro cylinder in your existing door and adds five ways to unlock: fingerprint, PIN keypad, Blusafe RFID key card, the Tuya Smart app, or the included mechanical key. Choose Silver, Gold or Black to suit your door furniture.
Once unlocked, turn the Axis knob manually, then use your door handle to open the door. Axis works with your existing compatible lock mechanism.
Check the cylinder size and clearance, fit your Axis, pair Tuya Smart and manage users and temporary passcodes. The app connects nearby over Bluetooth. For out-of-home app control, add a compatible Tuya Bluetooth gateway connected to your home network; contact us to confirm the correct model. With a compatible gateway and voice integration enabled, Axis also works with Google Home and Amazon Alexa.
Follow the Axis interactive manual for fitting, Tuya Smart setup, fingerprints, PINs, battery replacement and troubleshooting.
Open the Axis interactive manual →
PIN Keypad
RFID Key Card
App Unlock
Remote App Unlock
Physical Backup Key
Temporary Passcode
Bluetooth
Gateway Compatible
App Control
Guest Access
Activity Log
Low-Battery Alert
✓Five ways in
fingerprint, PIN keypad, Blusafe RFID key card, Tuya Smart app (Bluetooth), mechanical key
✓Fits your existing door
replaces a compatible euro cylinder on doors 35–70 mm thick; check cylinder measurements and furniture clearance
✓Time-limited access
manage users and create temporary passcodes in the Tuya Smart app
✓Adjustable euro lengths
35/35 mm to 50/50 mm, measured from the central fixing screw to each end
✓Access management
store up to 50 fingerprints and 100 PINs, create temporary passcodes and check access records in Tuya Smart
✓Emergency USB power
4 × AAA batteries, not included, with a USB emergency power input
✓Three finishes
alloy construction in Silver, Gold or Black
Four AAA batteries and a compatible Tuya gateway are sold separately. Door handles and other door furniture shown are not included.
Axis is designed for compatible euro-profile locks on doors 35–70 mm thick. Its cylinder size range is 35/35 mm to 50/50 mm: each figure is measured from the central fixing screw to one end of the cylinder. Door thickness and cylinder size are different measurements. Check the lock case and clearance around your handles or escutcheons. If unsure, send us your measurements and photographs before ordering.
Nearby Tuya Smart app use works over Bluetooth without a gateway. Out-of-home app control requires a compatible Tuya Bluetooth gateway, sold separately, connected to your home network. Google Home and Amazon Alexa also require a compatible gateway and voice integration to be enabled. Contact us to confirm the correct gateway for your Axis.
Measure from the central fixing screw to each end of your existing cylinder. Axis supports 35/35 mm to 50/50 mm cylinder sizes, for doors 35–70 mm thick. Send us both measurements and photographs of your handles and open door edge if you need help checking the fit.
Use Axis indoors or in a sheltered position protected from rain and direct water exposure. It is not waterproof. Contact us if you are unsure about your door location.
Use one of the two included mechanical keys, or follow the Axis guide to supply USB emergency power. Replace the four AAA batteries when depleted; batteries are not included. Loosen the front screw and swivel the retained cover aside to reach the batteries and backup-key access. USB emergency power does not recharge the fitted batteries.
Tuya Smart ● 3 Finishes ● 5 Entry Methods ● UK-Based Support
Key features
Fingerprint, PIN, key card, phone and key, in place of the euro cylinder already in your door. Fitted in under an hour, no drilling.
73 seconds. Silver, Gold and Black, five ways to unlock and everyday operation. Sound on.
Fingerprint
PIN keypad
RFID key card
Tuya Smart app
Mechanical key
The Tuya Smart app works over Bluetooth when you are at the door. Remote access, Alexa and Google Home need a compatible Tuya gateway, sold separately or included in the Smart Access Bundle.

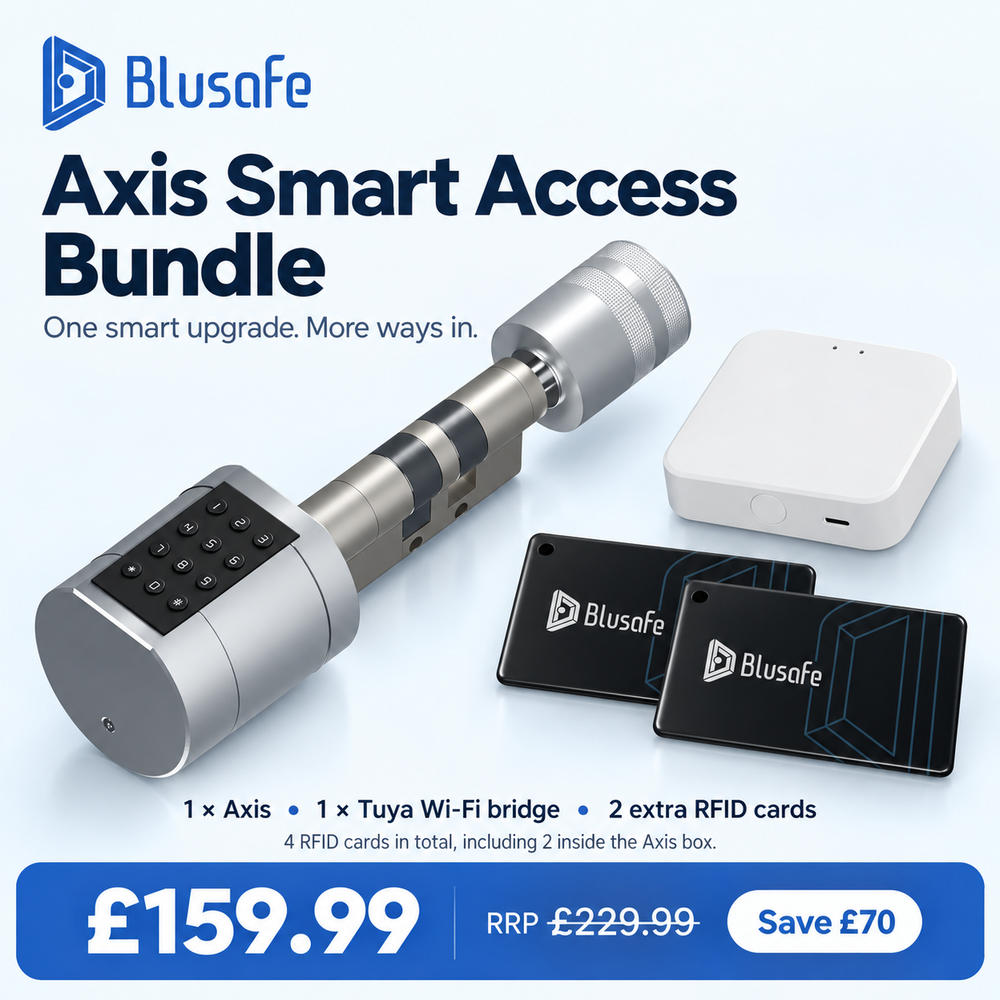

The bundle
The Smart Access Bundle pairs Axis with the Tuya Wi-Fi bridge it needs for app control away from home, plus two extra key cards, for less than buying the three separately.
Remote access includedEverything for app control away from home: the cylinder, the bridge that puts it online and two extra key cards.
€189,95€214,85 bought separately
Save €24,90 against buying separately
Choose the finish on the bundle page. The saving is worked out live from today's prices of the three items.
Compatible accessories
Axis runs on the Tuya Smart platform. These are the two things most people add, and the guide that walks you through fitting and setup.

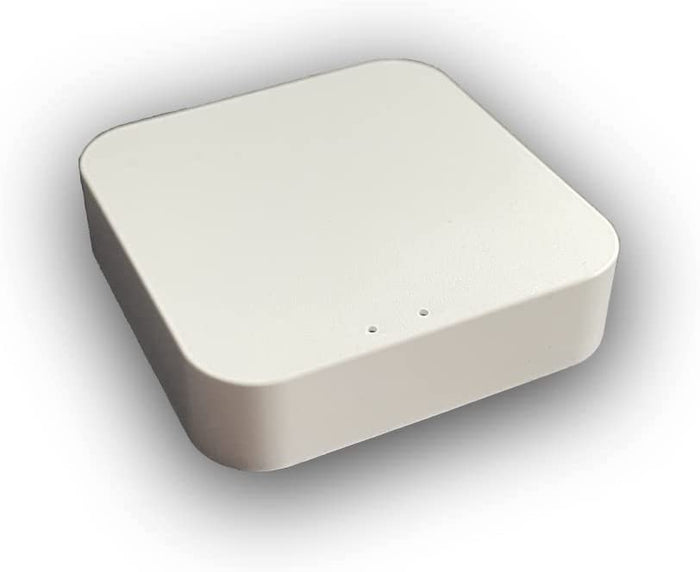

Plugs in indoors within Bluetooth range of the door and puts Axis on your Wi-Fi: unlock away from home, get alerts, use Alexa or Google Home.
€47,95View →
Tap-to-unlock cards for family, cleaners or guests. Each card is added and removed on its own in the app.
€11,95View →
Fitting and setup
Measure your door, adjust the cam, fit the cylinder, pair Tuya Smart and add fingerprints, codes and cards, with tick-off steps and a fix-it section.
Open the manualThe bridge and the key cards are included in the Smart Access Bundle. Nothing here is included with the standalone Axis. See every Tuya Blusafe product
Key features
One cylinder, fitted to the lock already in your door. Open it the way that suits each person in the house, then turn the Axis and go.
50
Touch the sensor and turn. Register two fingers per person, up to 50 in total.
100
Permanent PINs for the household and temporary codes for visitors. Add random digits before and after your code to hide it from onlookers.
RFID
Two Blusafe RFID cards in the box, more available. Hold a card to the keypad; lose one and delete just that card in the app.
Tuya Smart
Unlock, add people and read the access log from your phone at the door. Nothing else to buy for everyday use.
Remote
Add a compatible Tuya Wi-Fi bridge and Axis joins your Wi-Fi: unlock remotely, get alerts, and use Alexa or Google Home.
Bridge sold separately or in the Smart Access Bundle.
Guests
Time-limited, one-time and custom codes for cleaners, trades and guests. Every unlock is logged with who and when.
4 × AAA
Four AAA batteries you change in a minute, a low-battery warning well ahead of time, and a USB port for emergency power if they ever run flat.
Batteries not included. USB does not recharge them.
2 keys
Two keys in the box. Keep one outside the property and you always have a way in.
Check your fit first
Designed for a range of compatible Euro-profile doors. The adjustable shaft and included extender help configure the fit.
Door thickness is only part of the check: the existing cylinder profile, cylinder lengths and surrounding handle arrangement also matter.
Use our compatibility checker, or choose its WhatsApp photo option for help before ordering.
Coordinate your Axis with your door and handle.
Your Axis includes one reset card, two mechanical keys, two Blusafe RFID cards, an extension bolt and tools.
Keep the backup keys somewhere accessible outside the locked room or property.
Axis runs on four replaceable AAA batteries and includes a low-battery alert. If the batteries run out, the emergency USB power option provides temporary power.
Loosen the front-cover screw and swivel the retained cover aside to reach the batteries and backup-key access.
Emergency USB power does not recharge the AAA batteries.
No. After electronic access is granted, turn the cylinder yourself and operate the existing door handle. The film shows everyday operation.
No. Check the Euro-cylinder profile, required lengths, door thickness and handle clearance. The compatibility checker or our WhatsApp photo service can help you check.
A compatible Tuya Wi-Fi bridge is separate with standalone Axis. It is included in the Axis Smart Access Bundle.
Use the Axis interactive manual for installation, setup and troubleshooting, plus the supplier-reference PDF.
Check your door, choose your finish and keep the Axis manual handy.
